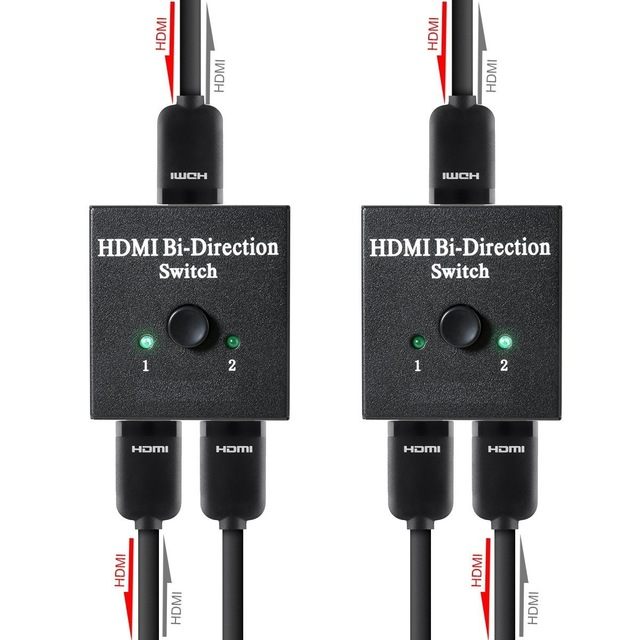

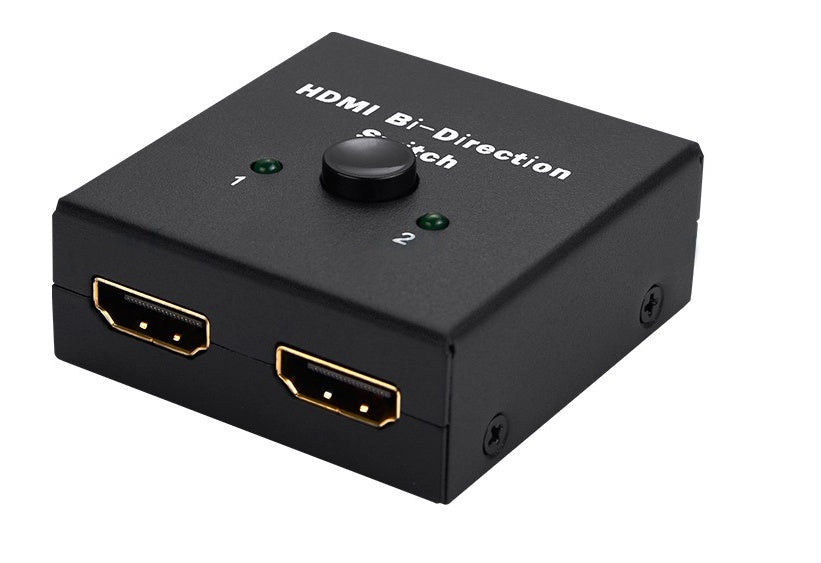

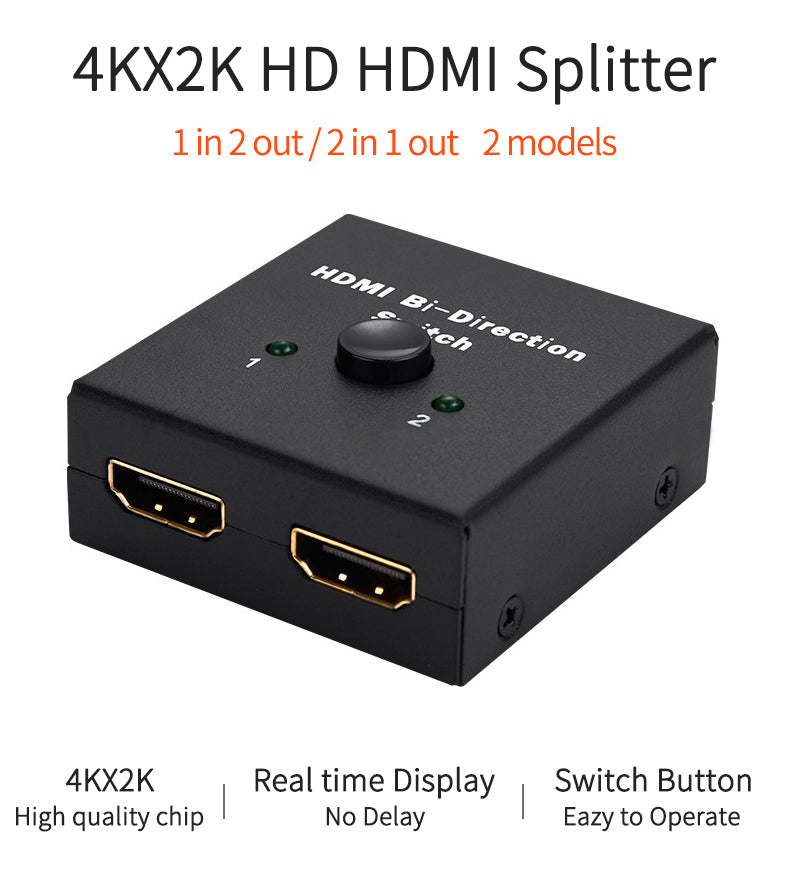

HDMI two-way two in one out switch

Name: HDMI two-way two in one out switch
Brand: Elyvora LLC
Price: 13.48 USD
Availability: InStock

(126 Reviews)

$13.48 USD

SAVE % Sold out

Shipping calculated at checkout.

Color Black

Product variants

Quantity

Ships within 1–2 business days. Delivery time varies by destination. Shipping options and costs are shown at checkout.

Installation and Safety Precautions

1.Cables must be placed well, where it would not be stepped on or pinched. Make sure HDMI cables are fully inserted into ports.

2.To provide sufficient ventilation during use, make sure there is at least 1 inch of clearance on each side of the

device (except the side where it rests on a flat surface).

3.Do not set up this product adjacent to a water source or an environment that has excessive moisture.
4.Place this product on a flat surface and keep it out of reach of children.

Package Contents

1.HDMI Bi-Direction Switch x1

2.User Manual x1

Schematic Diagram of Connection

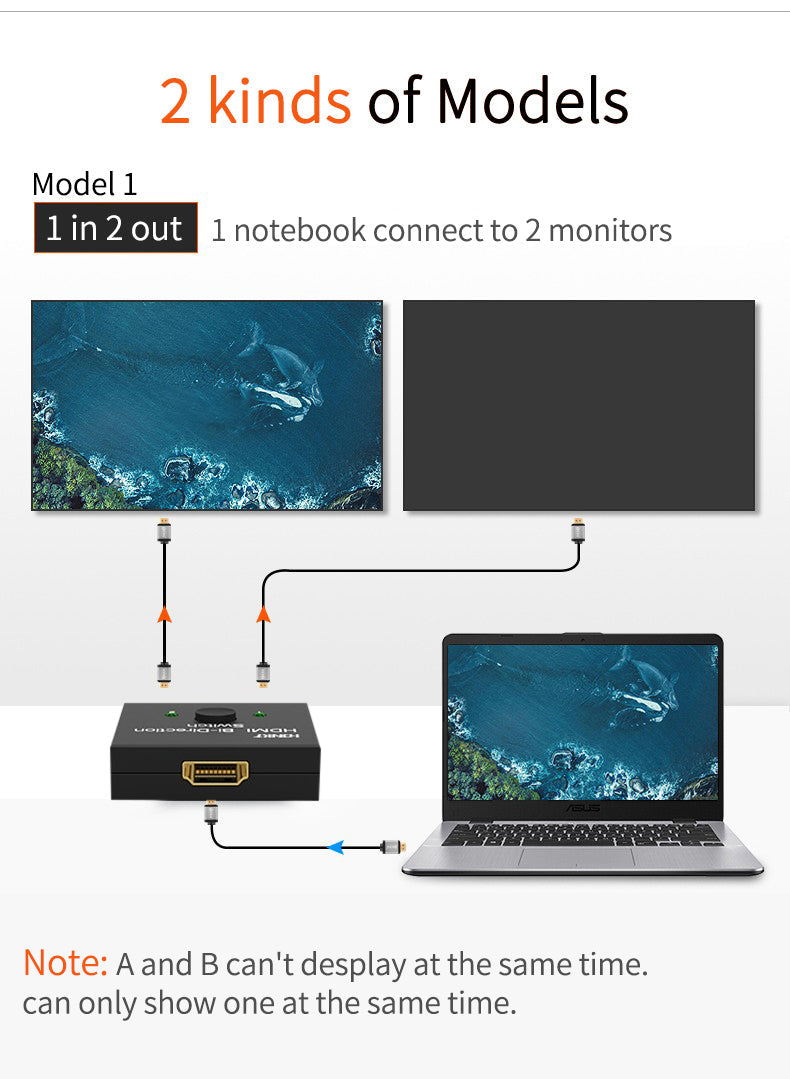

Example of 1 Input to 2 Outputs

undefined

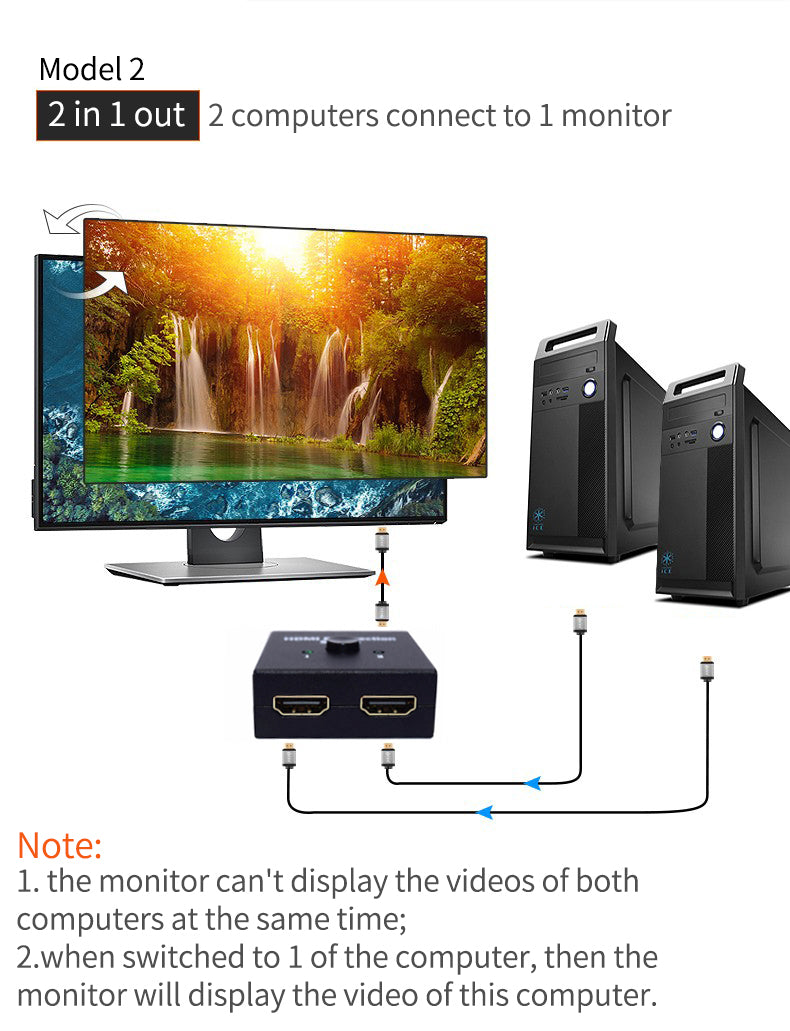

Example of 2 Inputs to 1 Outpu

Features & Specification

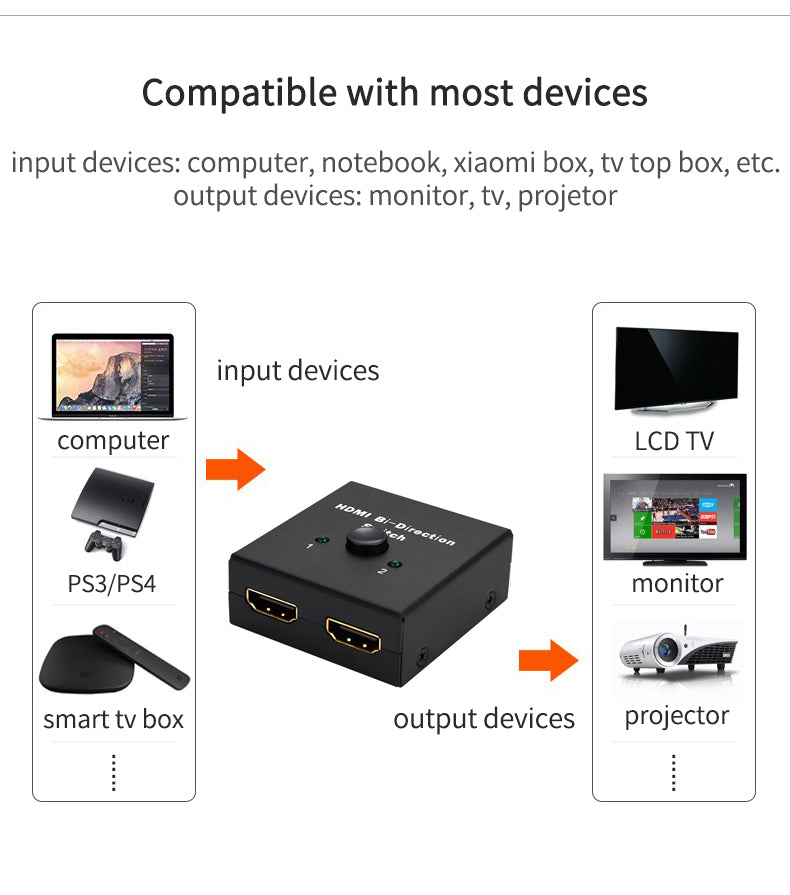

*2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV

*1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV

*Power free

*MAX operation current:15ma

*Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3

*Main control: Manual electron select

*With 2 LED & display working port

*3 HDMI A/F connectors

*LED : 2 (Blue),Display working port

*Easy install & operation

*Support HDMI Plug & Play

*Support HDMI 1920 * 1080P * 60(MAX)

*Support MAX cable length:5m (total)

*Plug & Play

*Dimensions:42*50*25 mm(L,W, H)

* Weight:35g Housing: Plastic
