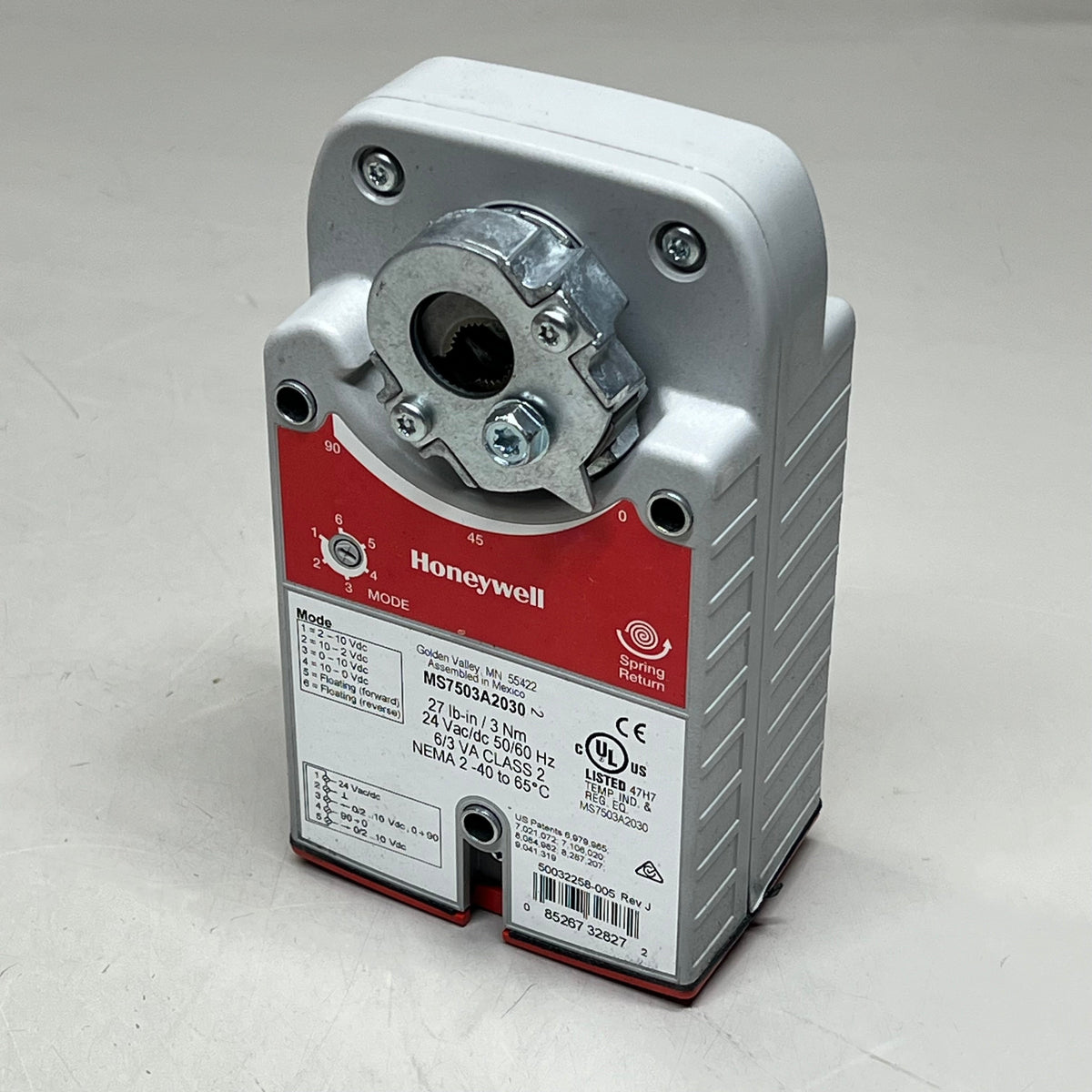

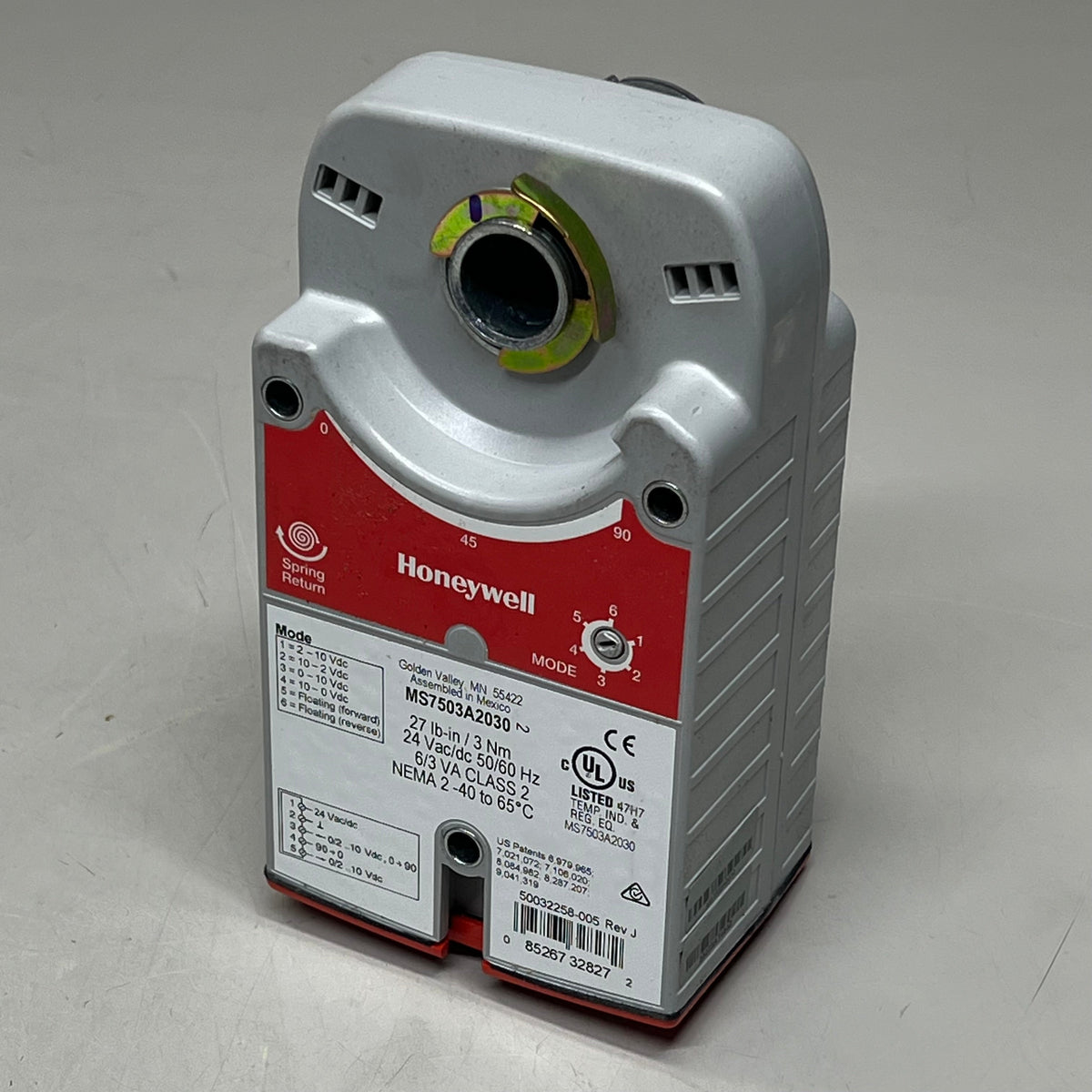

HONEY WELL Direct Coupled Actuator 3 Nm Spring Return 24 VAC MS7503A2030

HONEY WELL Direct Coupled Actuator 3 Nm Spring Return 24 VAC MS7503A2030

 (126 Reviews)
$250.00 USD
$330.00 USD $250.00 USD
SAVE 24% Sold out
Shipping calculated at checkout.

HONEY WELL

Direct Coupled Actuator 3 Nm Spring Return

Condition: New

Size: 24 VAC

Color: Grey

MPN/Model: MS7503A2030

Description:  MS7503 is a 27 lb-in (3Nm), spring return direct-coupled, line voltage actuator that accepts on/off (SPDT) or modulating (0/2-10 Vdc) control for: air dampers, air handlers, ventilation flaps, louvers, and ball valves.

Features:

  • Brushless DC submotor with electronic stall protection on all models

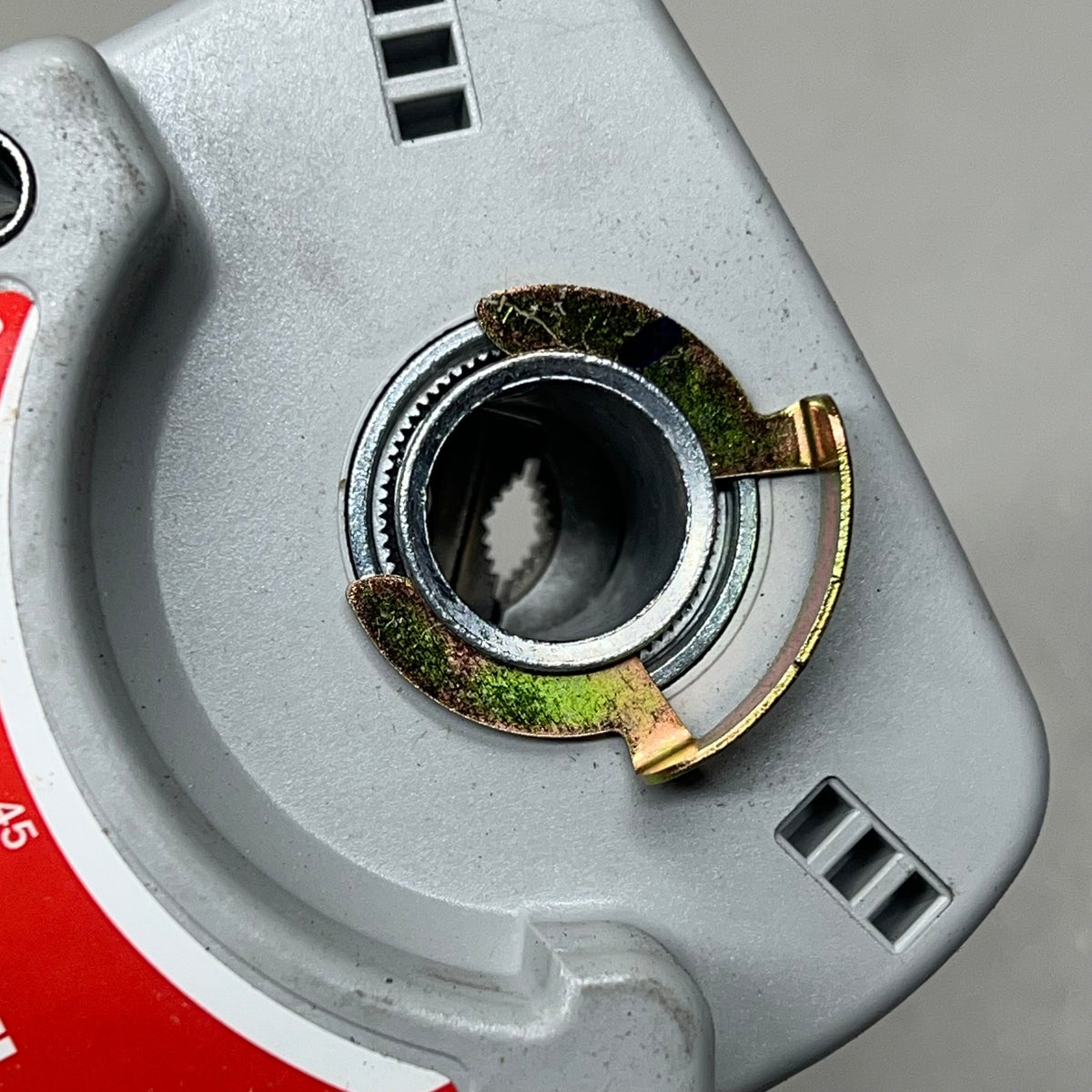

  • Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes

  • Models available for use with two-position, SPST, line- (Series 40) or low- (Series 80) voltage controls

  • Models available for use with floating or switched SPDT (Series 60) controls

  • Models available for use with proportional current or voltage (Series 70) controls

  • Models available with combined floating and modulating control in a single device

  • Models available with an internal end switch

  • Models available with three-foot, 18 AWG color-coded cable

  • Access cover to facilitate connectivity

  • Durable plastic housing with built-in mechanical end limits

  • Spring return direction field selectable

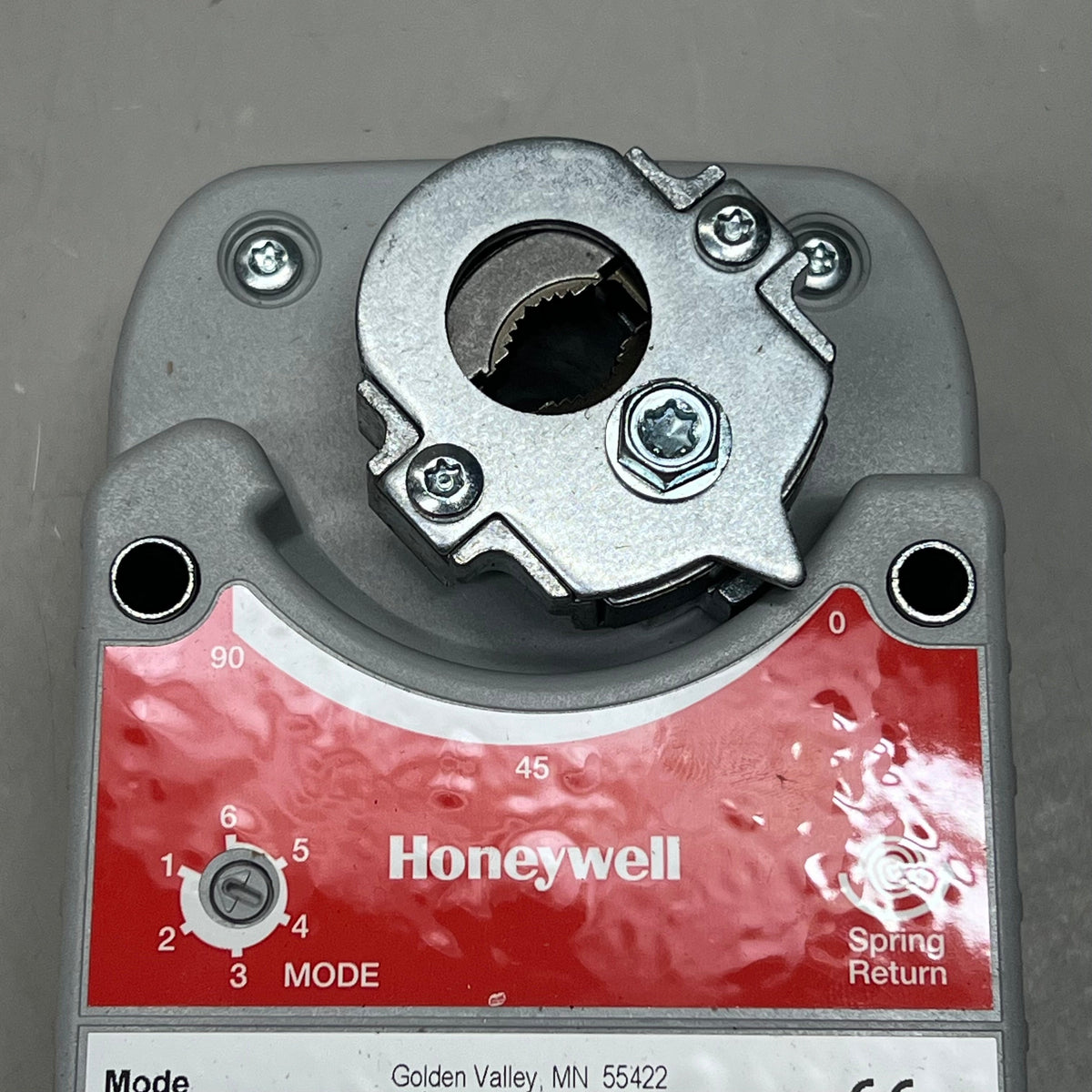

  • Shaft position indicator and scale

  • UL (cUL) listed and CE compliant

  • All models are plenum rated per UL873


Specifications:

  • Torque/Force (lb-in., lbf): 27 lb-in.

  • Torque/Force (Nm, N): 3 Nm

  • Fail Safe Mode: Spring Return

  • Control Signal: Floating

  • Control Signal: SPDT

  • Control Signal: On/Off

  • Control Signal: (0)2-10 Vdc (4-20 mA w/500 ohm resistor)

  • Supply Voltage: 24 Vac/dc

  • Number of Internal Auxiliary Switch: 0

  • External Auxiliary Switches Available: No

  • Shaft Adapter Type: Self-centering clamping

  • Feedback: (0)2-10 Vdc

  • Manual operation: N/A

  • Spring Return Torque/Force (lb-in., lbf): 27 lb-in

  • Spring Return Torque/Force (Nm, N): 3 Nm

  • Maximum Stall Torque/Force (lb-in., lbf): 70 lb-in.

  • Maximum Stall Torque/Force (Nm, N): 8 Nm

  • Mounting: Direct Coupled

  • Rotational Stroke: 95 ±3 Degrees

  • Rotational Stroke Adjustment: Mechanically limited 5 ° increments

  • Rotation to Open: By switch

  • Spring Return Direction: By orientation

  • Timing, Maximum Spring Return (sec): 25 sec

  • Timing, Nominal Driving @ 60 Hz (sec): 90 sec

  • Dimensions (in.): 6-81/54 high x 3-55/84 wide x 3-5/32 deep

  • Compatible Damper Shafts (in.): 3/8" to 5/8" round or 1/4" to 1/2" square

  • Materials: Plenum rated plastic housing

  • Power Consumption (Driving): 6/3 VA

  • Input Impedance: Min. 95 k Ohm

  • Electrical Connections: Enclosed screw terminal strip (22 to 14 AWG)

  • Maximum Noise Rating, Driving (dB(A) @ 1m): 40

  • Maximum Noise Rating, Holding (dB(A) @ 1m): 20 (no audible noise)

  • Environmental Rating: NEMA2

  • Ingress Protection Rating: IP54

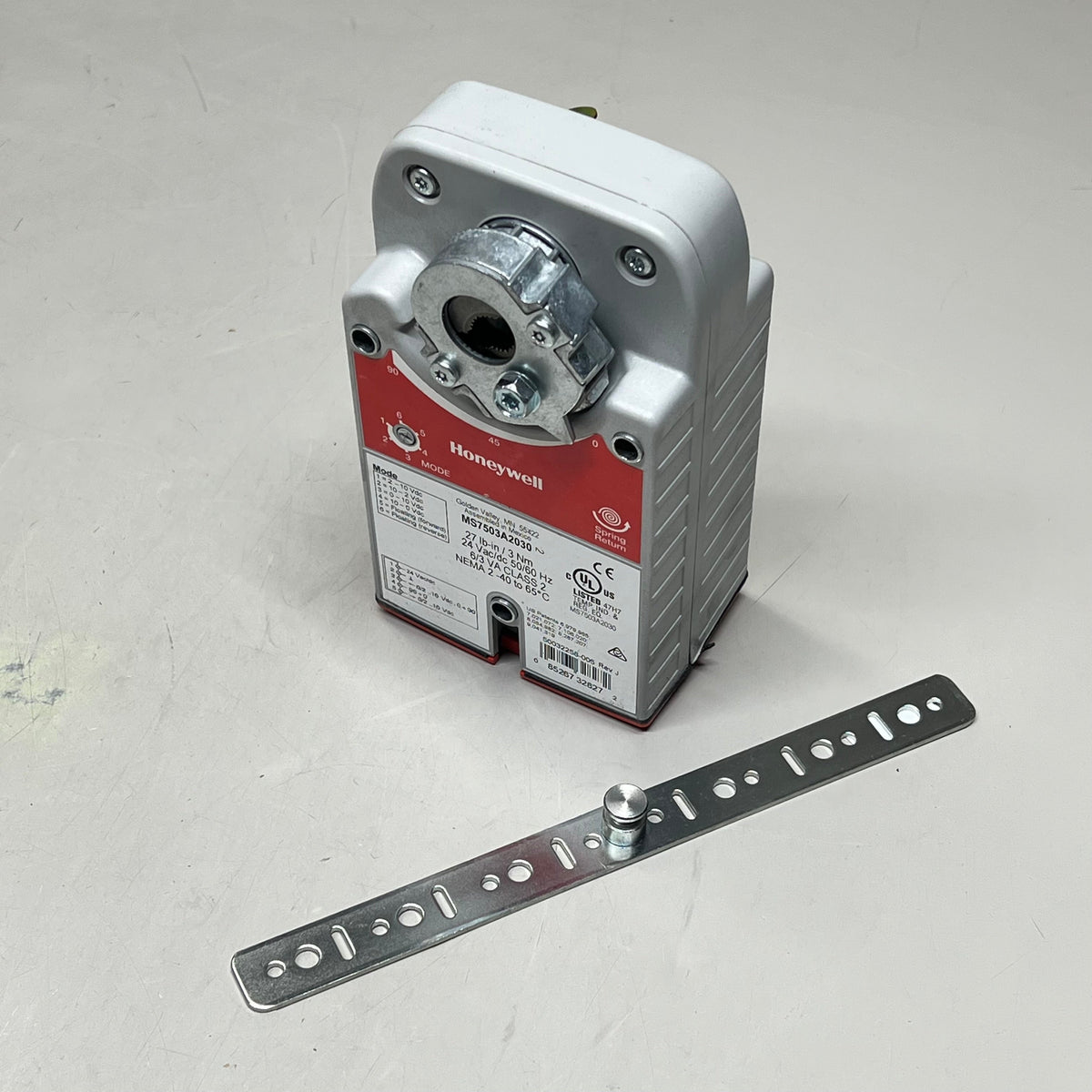

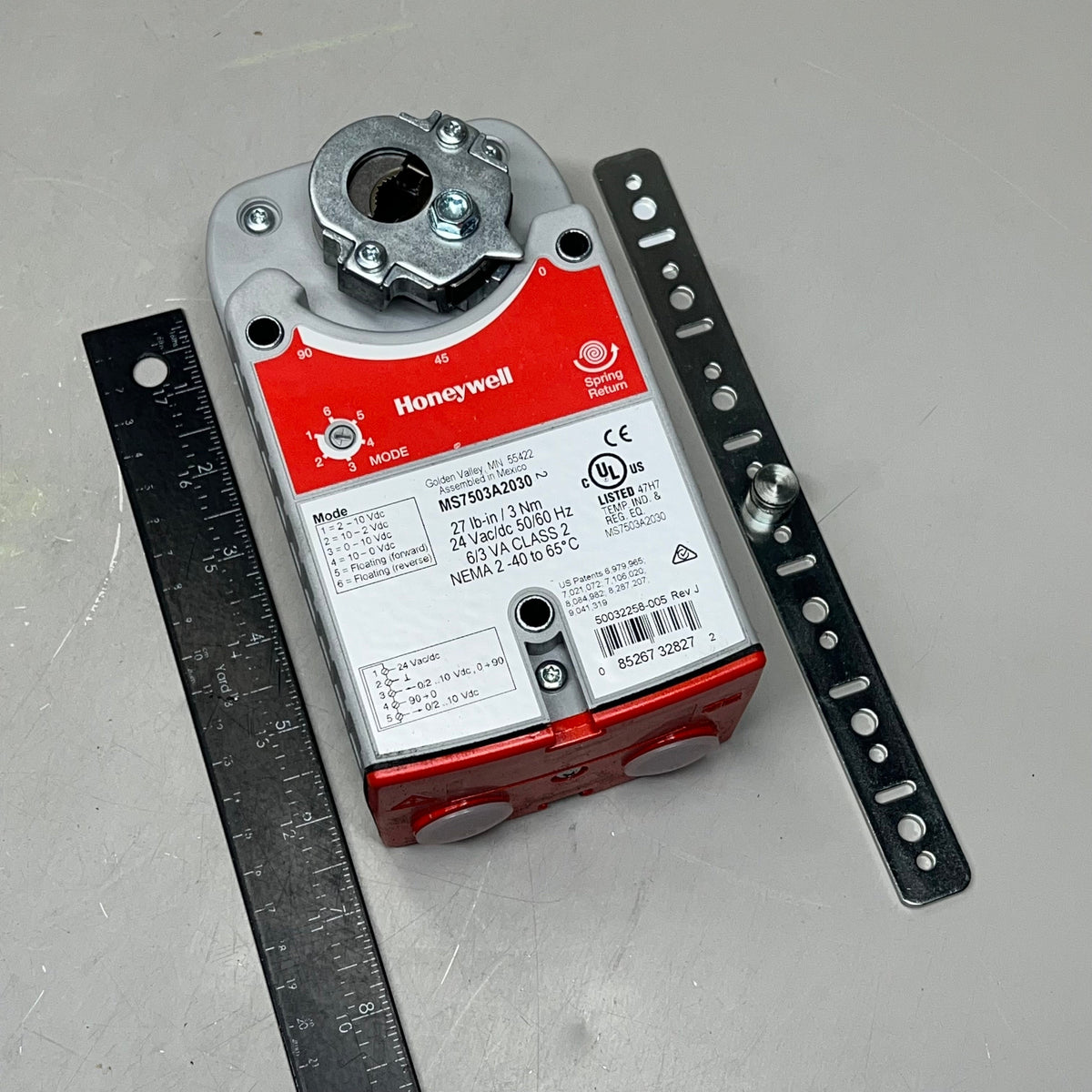

  • Includes: Mounting bracket, self-centering shaft adapter
