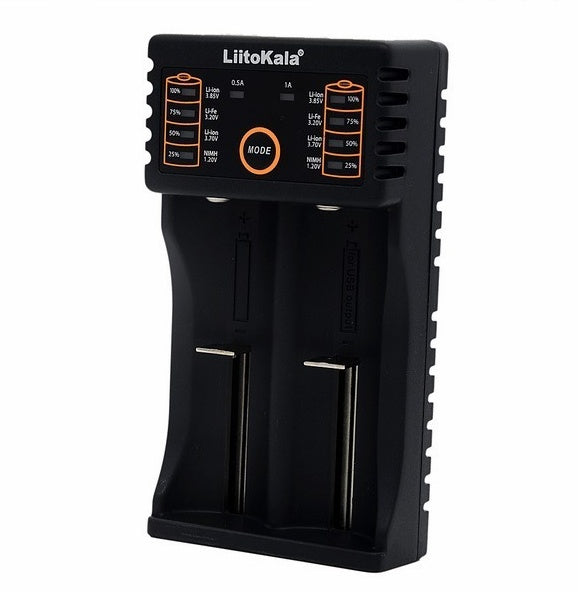

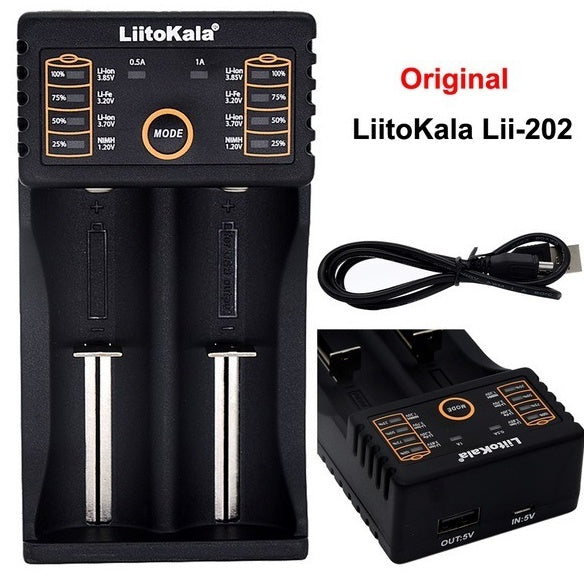

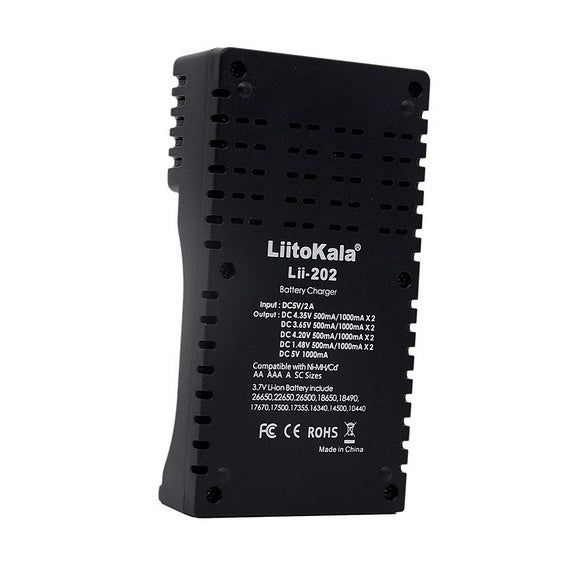

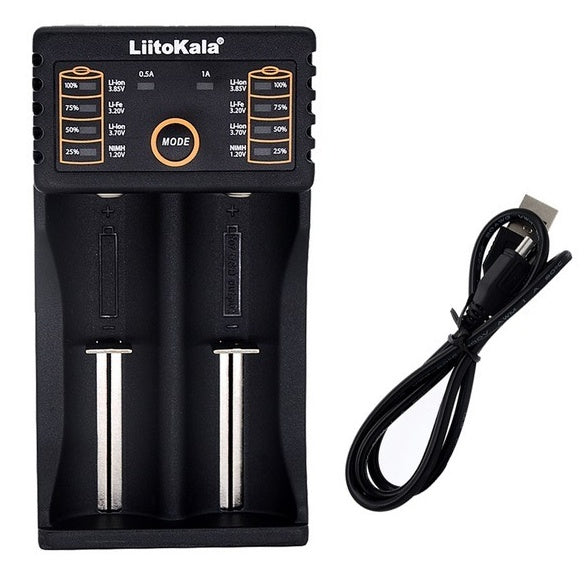

Lithium battery charger

Name: Lithium battery charger
Brand: Elyvora LLC
Price: 24.06 USD
Availability: InStock

(126 Reviews)

$24.06 USD

SAVE % Sold out

Shipping calculated at checkout.

Model C20

Product variants

Quantity

Ships within 1–2 business days. Delivery time varies by destination. Shipping options and costs are shown at checkout.

Electrical technical parameters:

Input power: Micro USB DC 5V / 2A

Output voltage: 1.42V

4.2V ± 0.05V,

3.65 ± 0.05V

4.35 ± 0.05V

Output current: 500mA / 1000mA

Constant voltage charging, cut-off current: <100m A;

External power standby current: <15.0m A;

USB output function:

USB port output no-load voltage: 4.90-5.30V;

Output current: 1000 m A;

No-load current: <1m A;

When the load is 1000m A, the output voltage of its port: 4.75-5.25V;

Stop output protection voltage: 3.0 ± 0.1V;

Compatible batteries:

Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

Charger size:

Length x width x height: 112mmx 60mmx30mm

caveat

* This charger can only charge cylindrical lithium ion batteries (3.7V, 3.8V), NiMH / NiCd, LiFePO4

* Before using, please carefully refer to the instruction manual, pay attention to the recommended charging current of the rechargeable battery, do not charge more than the recommended current

* Use 5V USB adapter to charge (adapter current is recommended 2A)

* The charger may become hot during charging and discharging. Be careful not to burn yourself.

* When you stop using it, please unplug the power and remove the battery

* Can only be used indoors

* The test data of this product is for reference only. For actual conditions, please refer to professional instruments.

Charger requirements and functions:

* Use Micro USB DC 5V input, two slots for independent charging and microcomputer management system

* Available with 2 charging currents (500mA / 1000mA)

* LED shows charging status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V.

* Automatically identify Li-ion and Ni-MH batteries, manually select Liepo4 and Li-ion 3.85V batteries

* With 0V voltage activation function, 1.65-1.85V cannot be charged (but there will be activated current trickle charging).

* Over-charge, over-discharge, short circuit, intelligent identification of bad battery and reverse battery detection protection.

* Charging mode, constant current and constant voltage

* DC input, charger working power is 5V-2A (Micro plug)

* With standard 5V / 1000mA USB automatic recognition output function,
