Radio Frequency Identification Sensor WS1850S MHz

Name: Radio Frequency Identification Sensor WS1850S MHz
Brand: Elyvora LLC
Price: 85.18 USD
Availability: InStock

(126 Reviews)

$85.18 USD

SAVE % Sold out

Shipping calculated at checkout.

Model M5StackRFID2

Transmit Power 4dBm

Sleep Power Consumption 1uA

Product variants

Quantity

Product information:
Emission current: 240MHz
Antenna interface: None
Application Field: Internet of Things
Size: 7*2
Product Series: IOT
Receiving current: None

Product Features：
1. Operating frequency: 13.56MHz
2.I2C data rate: fast mode: up to 400 kbit/s;. High-speed mode: up to 3400 Kbit/s
3. Transceiver buffer: 64 bytes
4. Supported protocols: ISO14443A,MIFARE, and NTAG
5. Operating Temperature: -20 ℃-85 ℃
6. Data storage:> 10 years
7. Reading distance: <20mm
8. Development Platform: Arduino,UIFlow(Blockly,Python)
9.2x Lego compatible hole

Download：
1. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, and click burn to start recording. (When recording M5StickC, set the baud rate to 750,000 or 115200)
2. Currently, EasyLoader is only applicable to Windows operating systems, compatible with M5 systems, and uses ESP32 as the control core host. You need to install the CP210X driver before burning M5Core (if you use M5StickC as the controller, you do not need to install it) [Click here to view the driver installation tutorial](/en/uiflow/uiflow_web# install the serial driver)

Packing list:

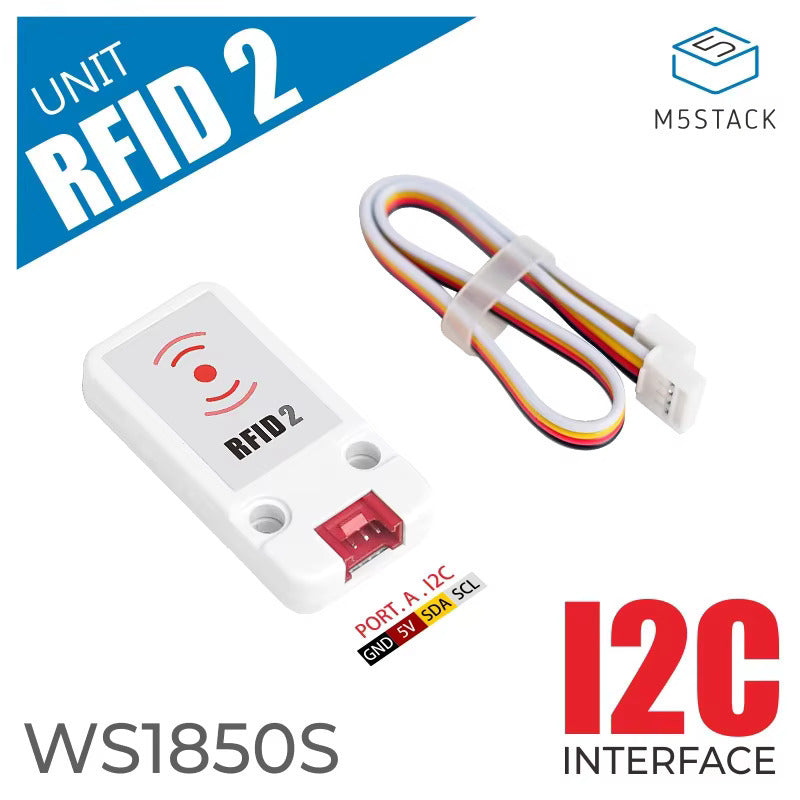

1x RFID unit 1x HY2.0-4P cable
Product Image:
