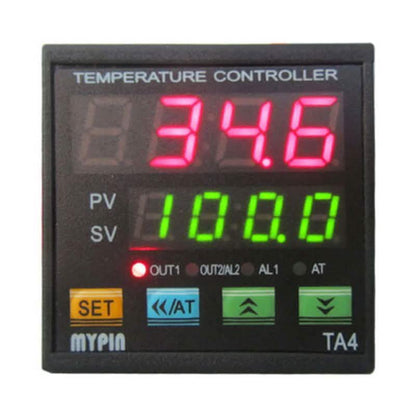

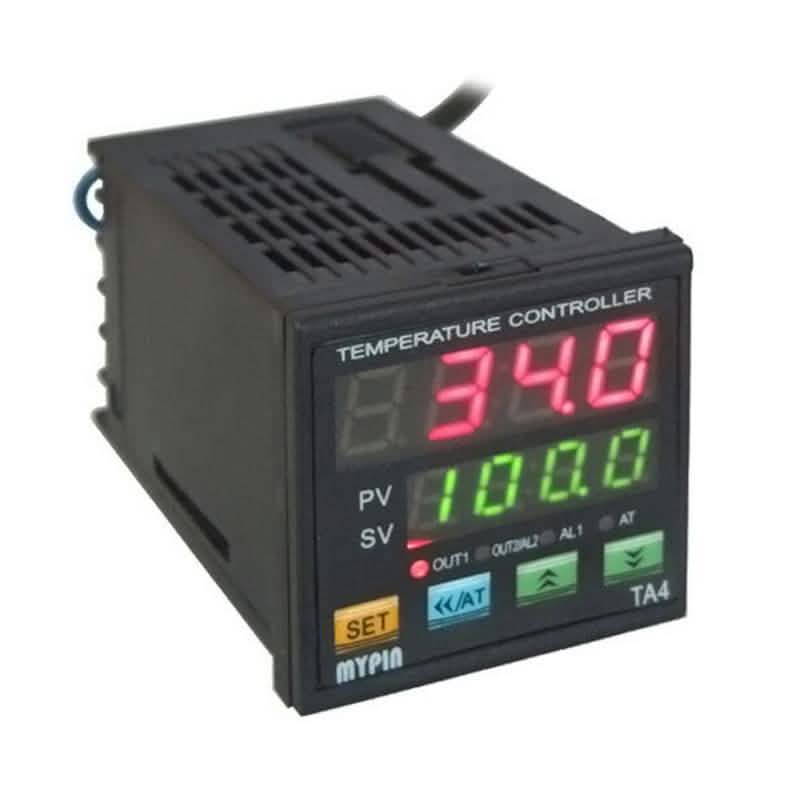

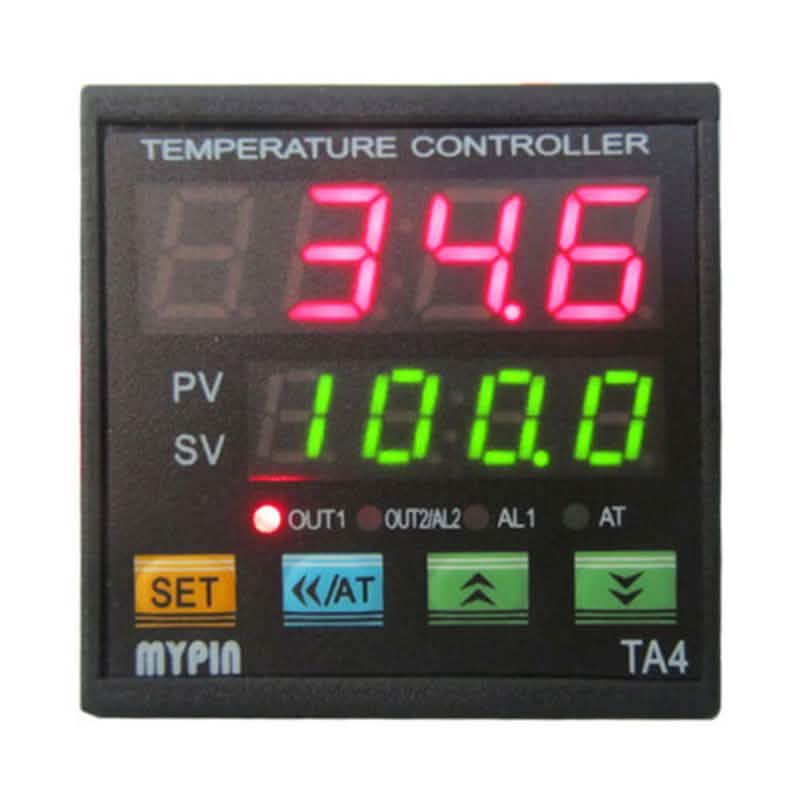

TA4-SNR Digital PID Temperature Controller 1 Alarm Relay Output TC/RTD

Name: TA4-SNR Digital PID Temperature Controller 1 Alarm Relay Output TC/RTD
Brand: DailySale
Price: 37.0 USD
Availability: OutOfStock

$37.00 USD

~~$59.00 USD~~ $37.00 USD

SAVE 37% Sold out

Shipping calculated at checkout.

Product variants

Quantity

Delivery timing varies by product, supplier, and destination. U.S. options, where available: Express 1–2 business days in transit; Economy 3–5; Standard 3–8. International Standard on eligible Collective products: 5–8 business days in transit. Canada and other supplier services: timing varies. Processing time is additional. Available shipping options and costs are shown at checkout.

Returns, made clear. Request a return within 30 days of delivery. Eligibility requirements and exclusions apply. View our return policy. Need a hand? Email velourivashop@gmail.com.

Widely used in auto system in line of light industry, chemistry, machine, metallurgy, ceramics, petrification industry, or temperature control and adjust system of food & beverage; oven, furnace, plastic extruder heating process etc.

Features:

Apply with step control, 2 independent PID control for heating/cooling over temperature, pressure, level, flow, etc.
Widely used in auto system in line of light industry, chemistry, machine, metallurgy, ceramics, petrification industry, or temperature control and adjust system of food & beverage; oven ;furnace, plastic extruder heating process etc.
One key operation, Auto-tuning PID/ Fuzzy PID control. Easy operation, Reliable performance
Input: TC（K, J, S, E, T, R, B）/ RTD（Pt100, CU50）universal input, (24V/30mA supply available for standard transmitter）
Accuracy: 0.3%
Control output: SSR
Alarm output: RELAY. 7 kinds of alarm mode: high / low / high deviation / low deviation/ interval / out of interval/breakage alarm
Dimensions: DIN 1/16 48 x 48 x 80mm
IP class: IP65
Power supply: Regular: 80-265V AC/DC 50/60HZ

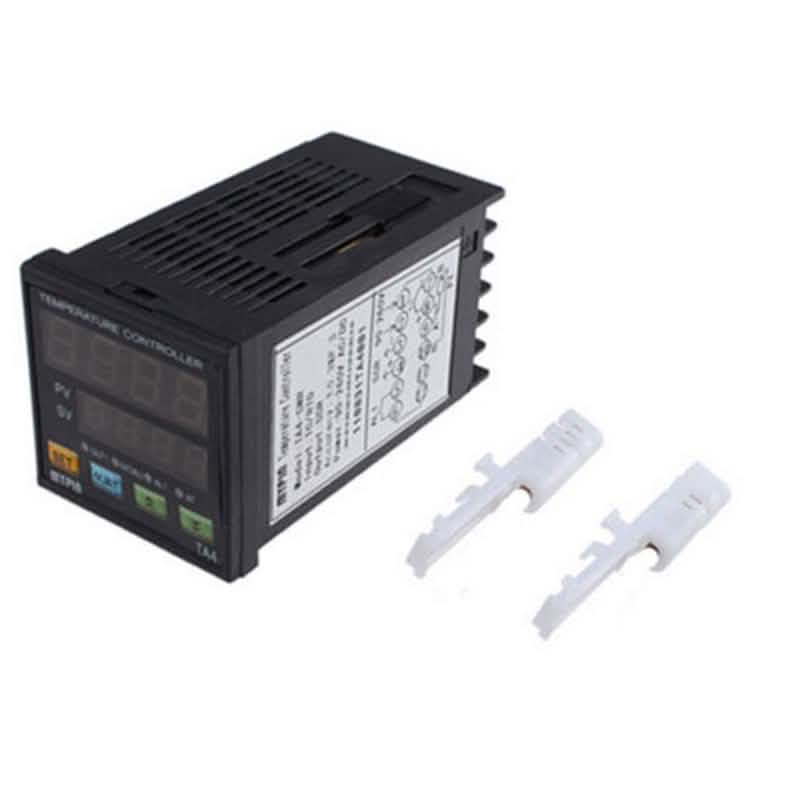

Includes: 1 x SNR PID Temperature Controller
